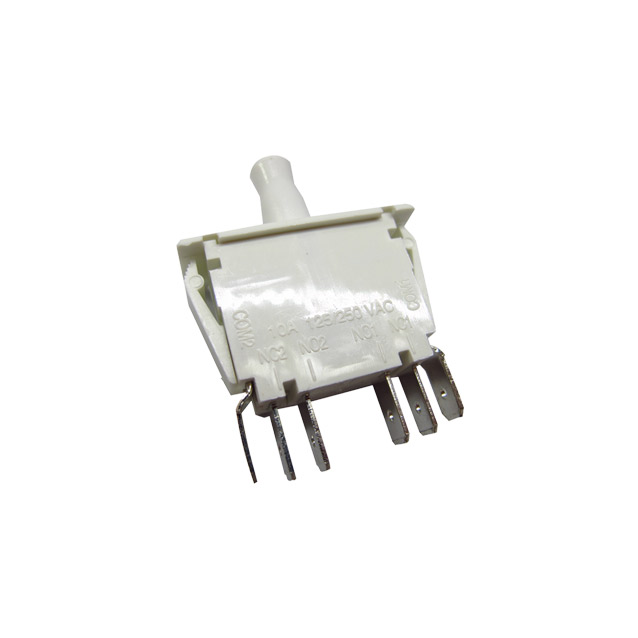

Door Switch 6 Pins

Inquiry
Prev Prev
Next Next

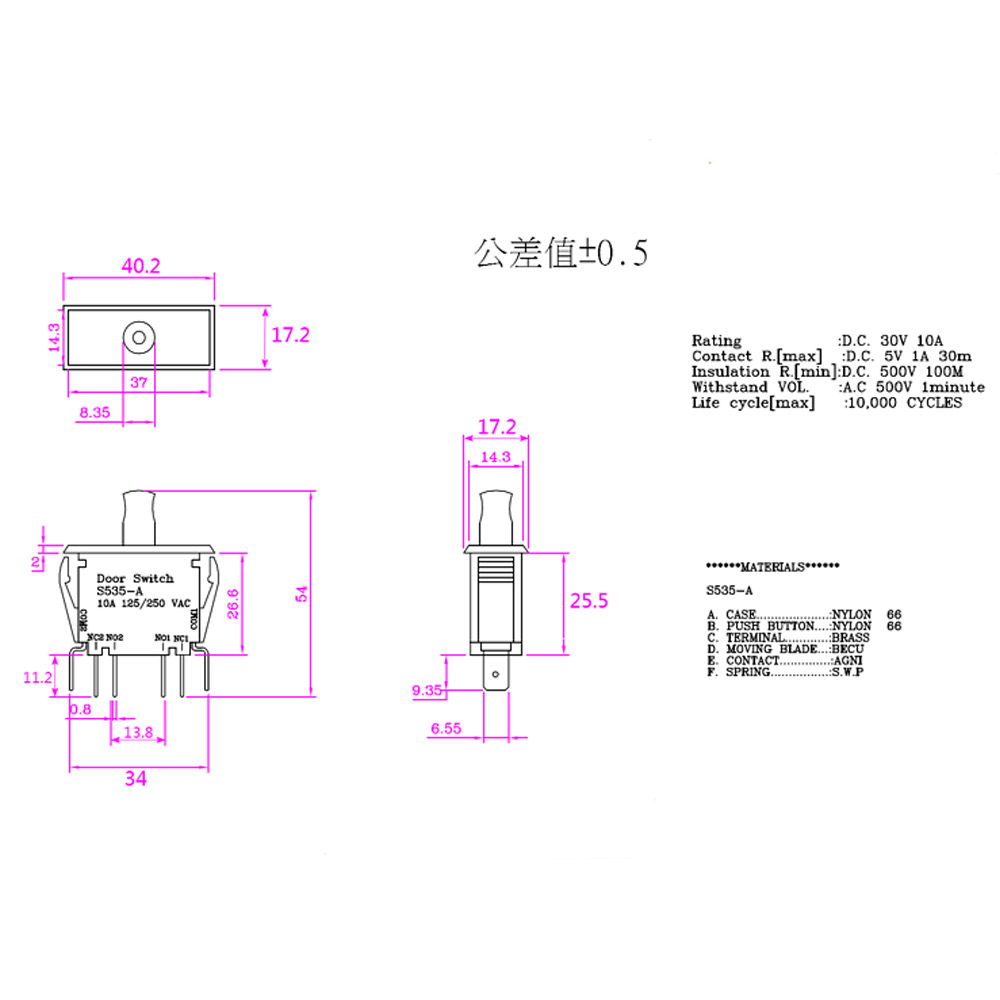

Product Description
A  Case Nylon 66
B  PuPush Buttonsh Button Nylon 66
C  Terminal BRASS
D  Moving Blade BECU
E  Contact AGNI
F  Spring S.W.P
Product Specification
1 Rating DC 30V 10A
2 Contact R.[Max] DC 5V 1A 30m
3 Insulation R.[Min] DC 500V 100M
4 Withstand VOL. AC 500V 1minute
5 Life cycle[Max] 10,000 cycles
